OBDII Converter ADC Connector

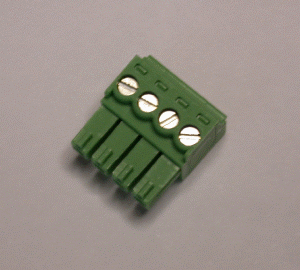

This is the mating connector to the analog to digital converter (ADC) connector on the side of the C.A.T.S. OBDII Converter that you received with the OBDII Tuner program. This connector allows you to connect to the ADC inputs for use with the MXScan data logging program from Monodax. The cost of this connector including shipping is $5.00.



The connections for the ADC channels in the OBDII Converter are as follows:

            Pin                                           Description
              1                  Channel 1 (nearest to the 9 pin PC connector)
              2                  Channel 2
              3                  Channel 3
              4                  Ground




Note: The very early OBDII converters did not have these ADC inputs and there is no ADC connector on the side of the box. If you have one of these early units you can still use the MXScan program for data logging but you won't have the ability to hook up external equipment such as a wide band AFR sensor.

Unfortunately, the early converters can not be updated to add the ADC inputs but we have put together an upgrade program so that you can exchange your old converter for a new one at a discounted price if you need the ADC inputs.
